Open.Theremin.LC

The Open.Theremin.LC is a simple and basic theremin circuit with one pitch antenna. The oscillators are built arround a coil (L) and capacity (C). The circuit will run on a 9V battery and produce a triangular output signal. The circuit is good to explore the basic theremin principle of heterodyne oscillators. For a more complete theremin with pitch and volume control see the new Open.Theremin.UNO.

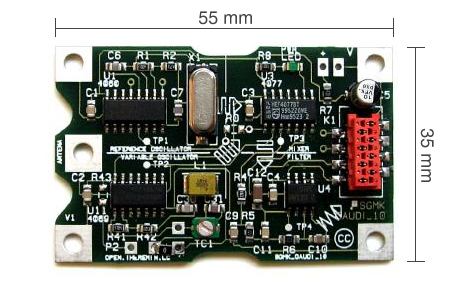

Open.Theremin.LC with 14 MHz resonator.

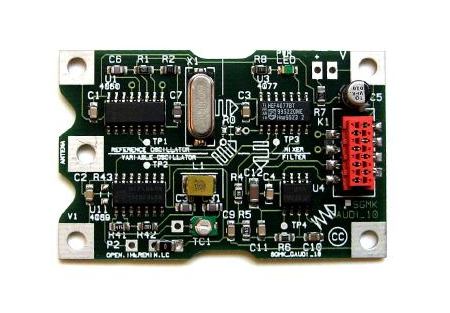

Open.Theremin.LC with 16 MHz resonator (red connector inverted)
