OpenSCAD is coding language for creating solid 3D objects.

The objects can be exported as STL file and 3D printed or shared online.

Website: https://www.openscad.org/

Download version: https://www.openscad.org/downloads.html
Online version: http://openscad.net

OpenSCAD Cheatsheet: https://www.openscad.org/cheatsheet/index.html

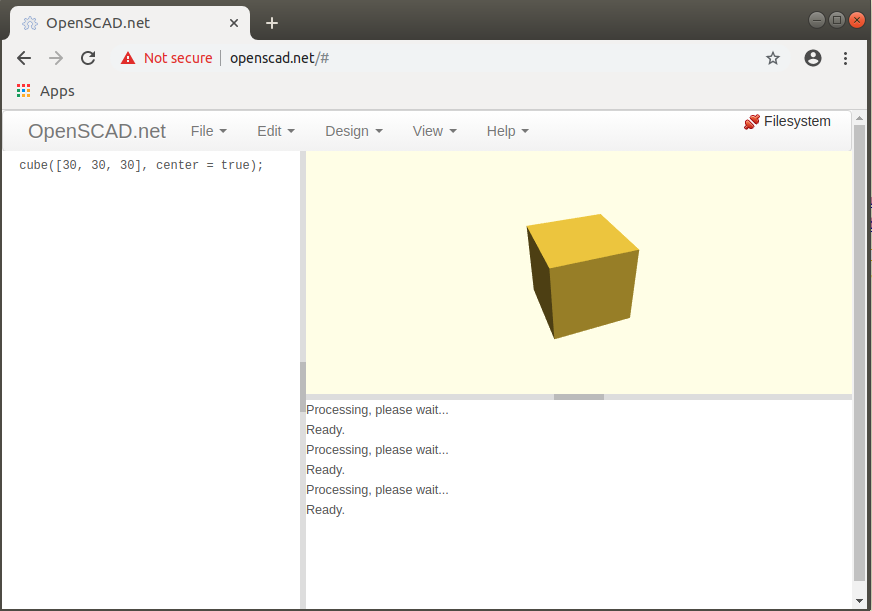

Make a cube

cube(size, center)


Type:

cube(30, center = true);

Hit: Design -> Reload & Preview (F4)

or

cube([width,depth,height], center)

cube([30, 30, 30], center = false);

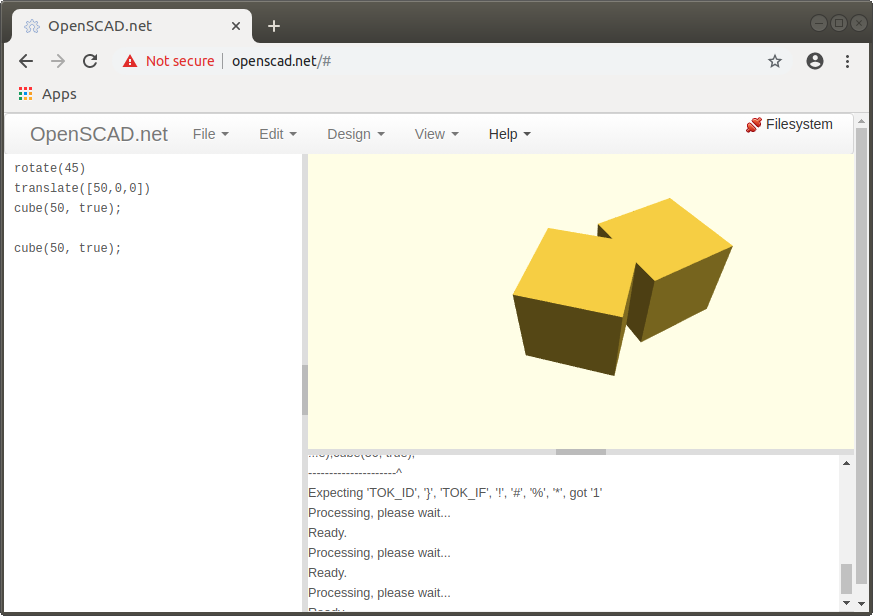

Rotate and Translate

translate([x,y,z]) rotate([x,y,z])


rotate(45)
translate([50,0,0])
cube(50, true);

cube(50, true);

Flow Control

for (i = [start:end]) { … }

for ( i = [0:20])
{
rotate(20*i)
translate([24,0,0])
cube( [10, 30, i*1+5], false);
}

Difference

difference()

difference()
{
rotate([10,10,10])
cube(50, true);
cube(45, true);
}

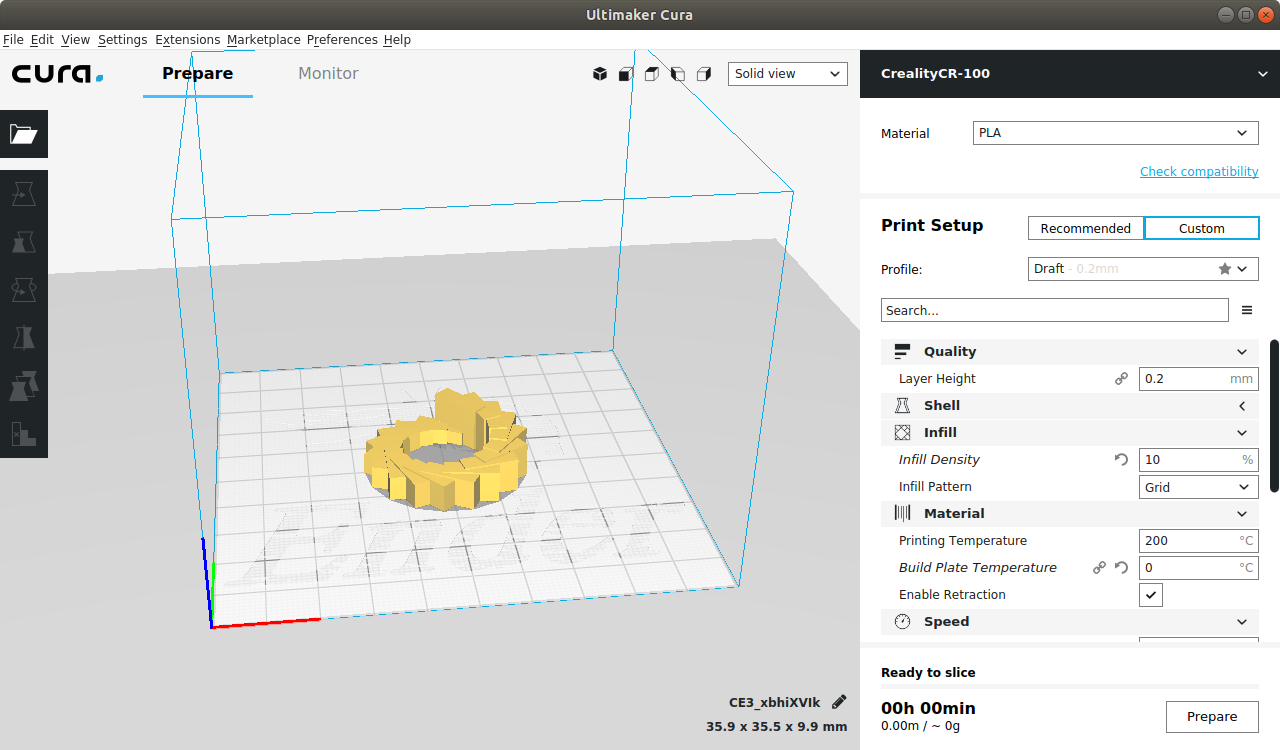

Export as STL to 3D print

Hit: Design -> Export as STL/DXF

save STL file and load it into Cura. Then print.

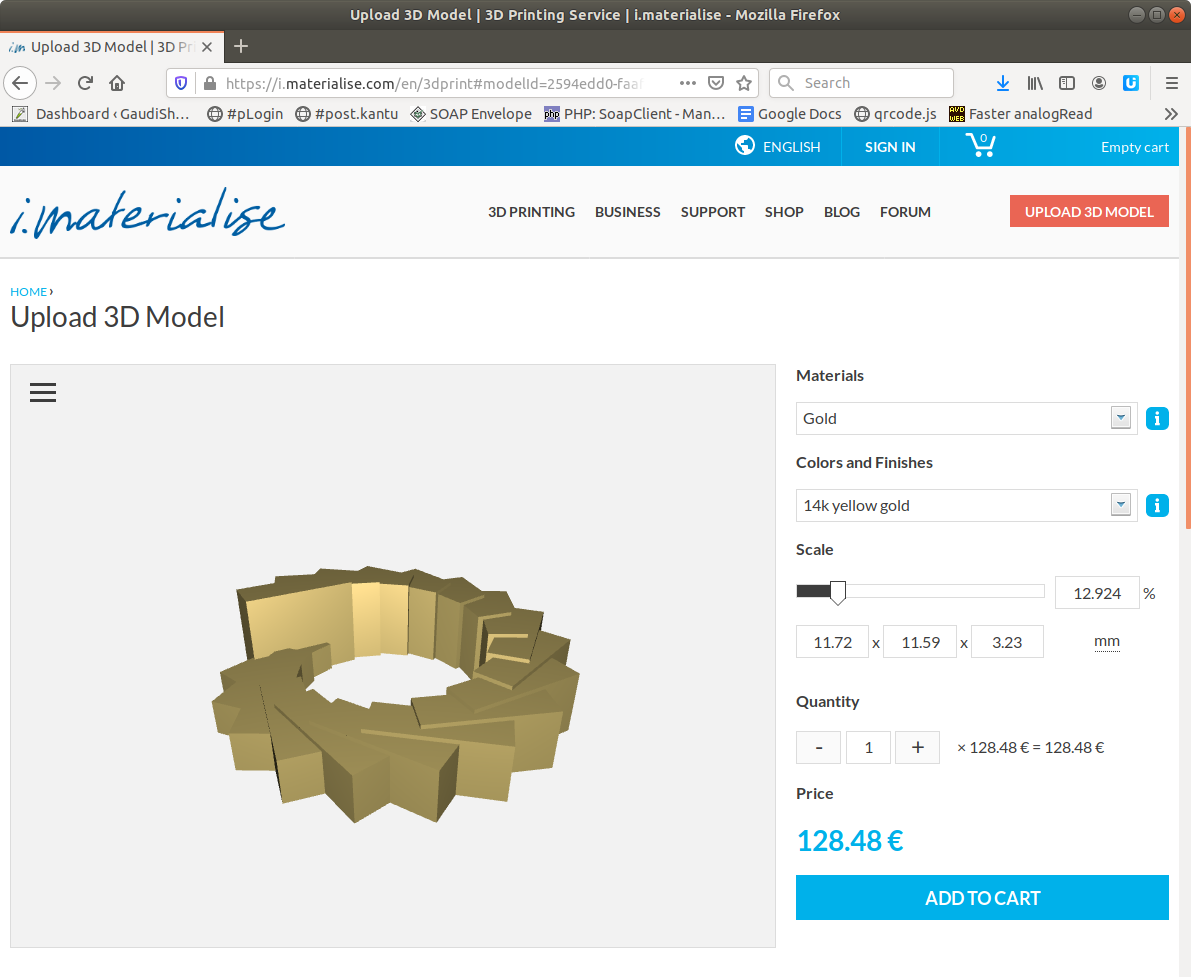

iMaterialise it

Website: https://i.materialise.com

Hit: Get Started

Upload 3D Model.

Choose STL file.

Choose Size and Material

Order.

or https://www.shapeways.com/

Share on Thingiverse.com

DIAMETER = 20; //[20:60]

for (i=[0:20])
{
rotate(20*i)
translate([DIAMETER,0,0])
cube( [10, 30, i*1+5], false);
}
