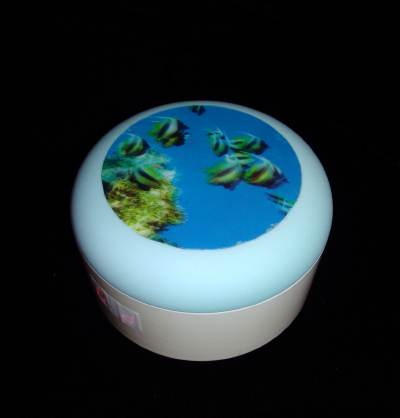

Scratch Box

Scratch Box

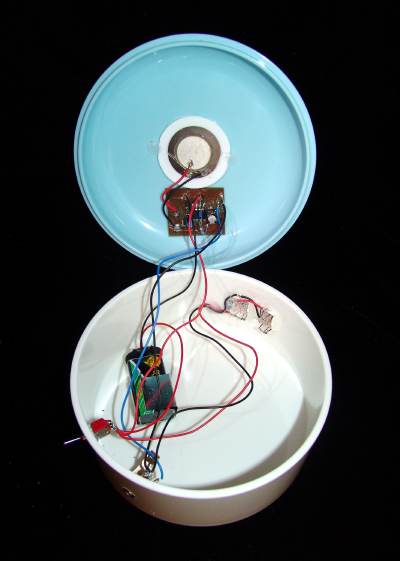

Scratch Box Inside







The LM386 is a power amplifier designed for use in low volt- age consumer applications. The gain is internally set to 20 to keep external part count low, but the addition of an external resistor and capacitor between pins 1 and 8 will increase the gain to any value from 20 to 200.
The inputs are ground referenced while the output automati- cally biases to one-half the supply voltage. The quiescent power drain is only 24 milliwatts when operating from a 6 volt supply, making the LM386 ideal for battery operation.

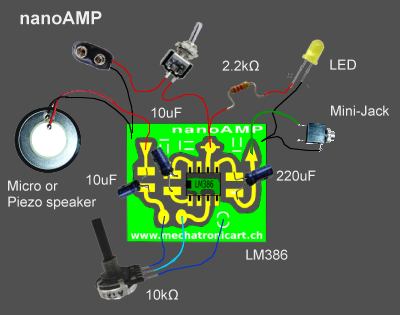

Nano Amp

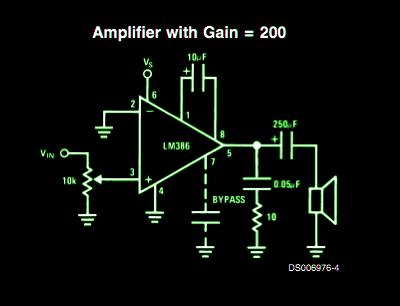

Nano Amp Schematic


  Creative Commons License DigitalSuper by Urs Gaudenz is licensed under a
Creative Commons Attribution-Noncommercial-Share Alike 3.0 Unported License.
